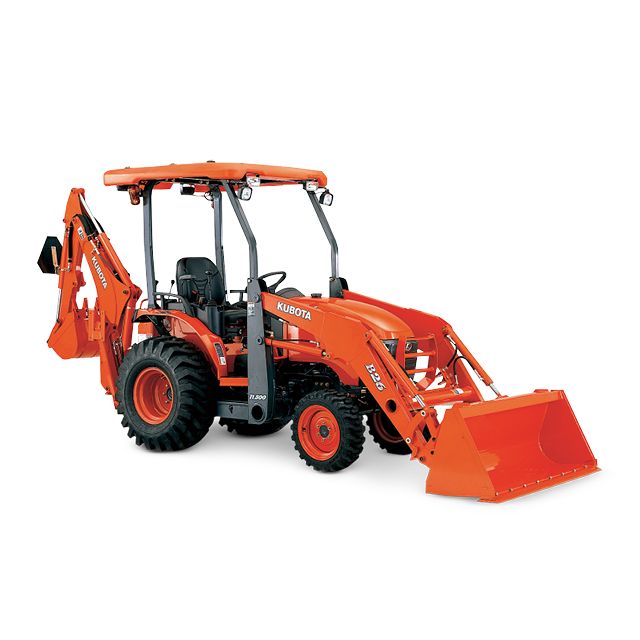

Kubota backhoe B26TLB

MODEL NAME

B26TLB

Engine

AIR PRE-CLEANER

Single element

RATED ENGINE SPEED

2800 rpm / 2800 rpm

ENGINE GROSS HORSEPOWER @ RPM

17.37 kW / 23.3 HP

PTO HORSEPOWER

14.47 kW / 19.4 HP

DISPLACEMENT

1123 cc / 68.5000 cu. in.

EMISSION CERTIFICATION

EPA Final Tier 4

FUEL TANK CAPACITY

31 l / 8.2 gal

NUMBER OF

CYLINDERS

3

Power take off (PTO)

TYPE

Independent

REAR

PTO/ENGINE SPEED

540 rpm / 540 rpm

Drive train/transmission

MAX. TRAVELING SPEED

17.8 km / h / 11.1 mph

RANGE GEAR SHIFT

Seat side, left

TRANSMISSION TYPE

HST (3 range)

BRAKE TYPE

Wet disc

DIFFERENTIAL LOCK - REAR AXLE

Standard

NUMBER OF

SPEED

Infinite

Hydraulic system

3-POINT HITCH

Optional

PUMP CAPACITY

42 l / min / 11.1 gpm

STEERING TYPE

Hydrostatic

LLFT CONTROL TYPE

POSITION CONTROL

Standard

LIFT CAPACITY

24" BEHIND LIFT POINT

760 kg / 1676 lb

Dimensions and weight

WHEELBASE

1581 mm / 62.2 in

STANDARD TIRE SIZE

FRONT

23 × 8.5–14 R4

REAR

12.4–16 R4

TREAD WIDTH

FRONT

905 mm / 35.6 in

REAR

1050 mm / 41.3 in

TURNING RADIUS

WITHOUT BRAKE

2.5 m / 8.2 ft

WEIGHT

POWER UNIT + 2 IMPLEMENTS

1815 kg / 4001 lb

Safety equipment

BACK UP ALARM

Optional

FOPS

Standard

OPEN STATION

4 post

Other

DECK TYPE

Full-floating ISO-mounted flat deck

LOADER-INTEGRATED REINFORCED FRAME

Standard

GLOW PLUG

Super glow

REVERSIBLE SEAT

Standard

HARD NOSE SLANTED HOOD

Standard

HORN

Optional

TILT STEERING WHEEL

Standard
